Pizzato is proud to present SafetySight Iridio, the innovative safety camera that redefines protection standards in the industrial sector.
A solution that integrates visual technology and advanced safety levels aimed at protecting operators inside hazardous areas enclosed by guards, preventing unexpected re-start of machinery by other members of personnel.
High level of safety
The SafetySight Iridio safety camera is designed for safety levels up to:
- SIL 2 acc. to IEC 61508
- PL d, cat. 3 acc. to ISO 13849-1
This makes the device suitable for the majority of industrial applications.
Advanced technology to prevent accidents
SafetySight Iridio revolutionises access control through monitoring of the protected area.

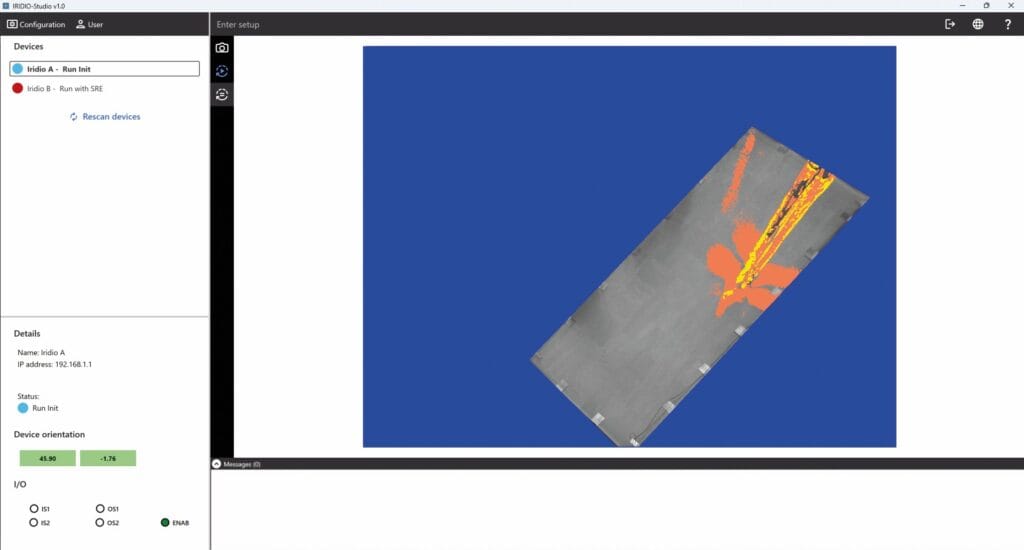

Following a request to restart the machine, the safety camera performs an automatic check of the area, detecting any operator motion before machinery start-up.
This function reduces the risk of an operator in the danger area being involved in an accident caused by unexpected restart of the machine by other operators, guaranteeing a higher level of protection than traditional mechanical lock-out systems.
Intuitive status signalling

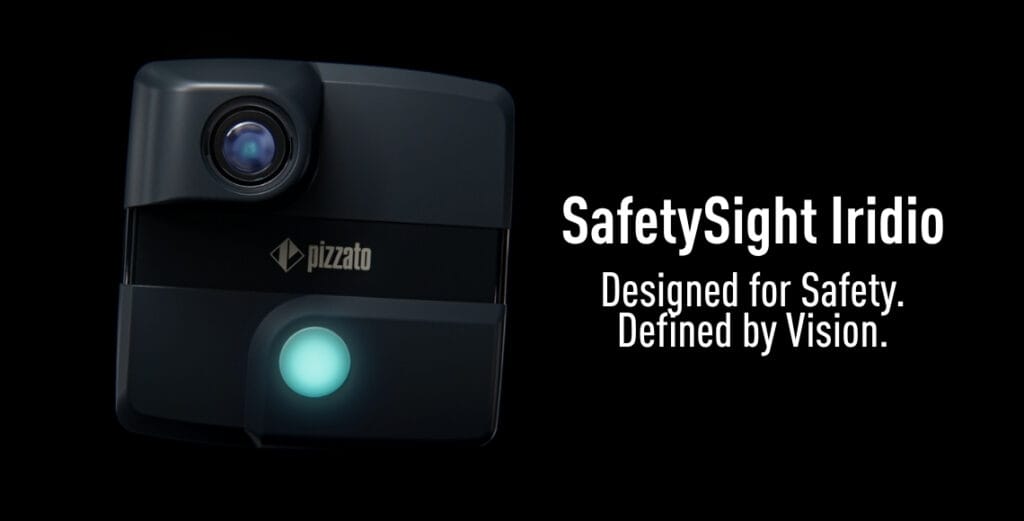

The safety camera has a front-mounted RGB LED ensuring immediate communication of the device operating status.
- Different colours for each operating mode
- Immediate visual check without the need for diagnostic tools
This enables operators and maintenance personnel to immediately verify the correct functioning of the system, facilitating operations and resolution of any anomalies.
All-in-one device
Each SafetySight Iridio contains a complete safety device that interfaces with the rest of the system via digital outputs. This means there is no need for a dedicated control device in the switching cabinet.
Another advantage is the possibility of connecting a SafetySight Iridio device directly to any safety controller compatible with OSSD signals, reducing costs and installation complexity.
Quick and intuitive configuration
Dedicated Iridio Studio software has been designed for configuration and calibration of the device, guiding the user through the entire process in a few minutes. The Iridio Studio software will be available for free download from the Pizzato website.
- Short commissioning time
- Autonomous installation for user
- Rapid resumption of productivity after installation or modifications
Custom selection of areas to monitor
The SafetySight Iridio safety camera enables exclusion of specific zones inside the selected area that do not need to be monitored.

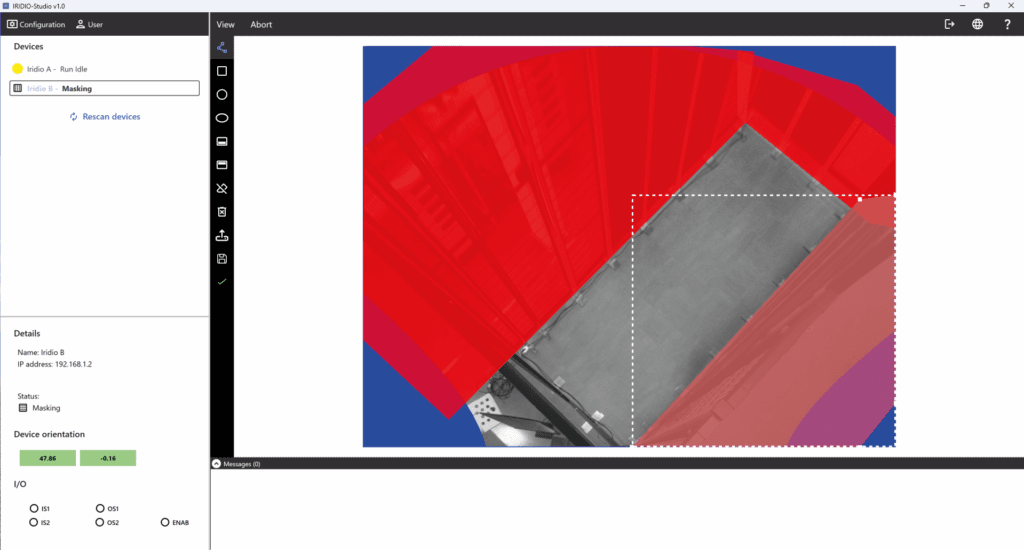

Using the Iridio Studio software, it is possible to visually check the monitored area, identifying and masking any zones outside the work area or elements that may cause disturbance.
Tolerance to scene changes
The SafetySight Iridio device can effectively distinguish tampering attempts from scene changes due to non-critical environmental variations, such as parts of the machinery resting in a different position each time they stop.
This significantly reduces false positives, avoiding production downtime due to the changing position of machinery.
Scalability for large or complex areas

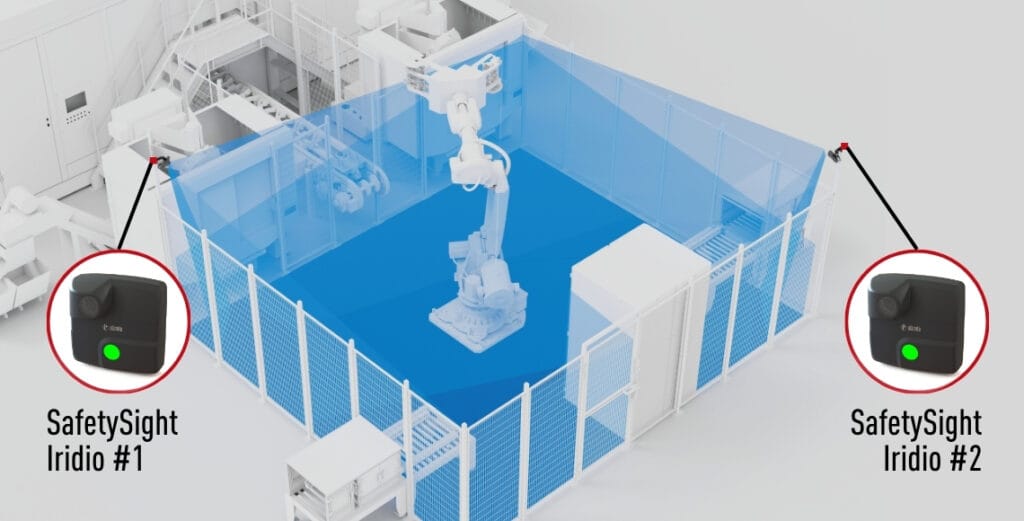

For applications that require monitoring of large or geometrically complex areas, it is possible to install multiple SafetySight Iridio devices:
- Extended coverage across large areas
- Elimination of blind spots
- Centralised management via the Iridio Studio software
This modular architecture means the system can be adapted to the specific requirements of any installation, ensuring full coverage regardless of the complexity of the area to be protected.
Applications and relevant industries
SafetySight Iridio is ideally suited for a wide range of industrial sectors, including:
- Robotic cells with multiple access points
- Automated production lines requiring frequent interventions
- Presses and metalworking machinery
- Assembly systems with extensive work areas
- Automatic loading/unloading bays
- Automatic warehouses and material handling systems
Find out more about the SafetySight Iridio safety camera: brochure
