Render Automation is an authorized distributor for Microsonic distance sensors in India. These sensors are used in various applications such as level measurement, distance measurement, and presence detection.
- sales@rendertechindia.com
- +91-8698009335
We are authorized Microsonic distributor in India. Microsonic is a leading manufacturer of ultrasonic sensors and accessories. The company’s products are known for their high quality, reliability, and precision.
Render is Authorized Distributor for Microsonic Products
Microsonic distance sensors represent a significant advancement in distance measurement technology, offering numerous benefits in terms of precision, durability, and versatility. As industries continue to embrace automation, these non-contact sensing devices will play a crucial role in enhancing operational efficiency and driving innovation. Understanding their functionality and applications can help businesses leverage their capabilities for improved outcomes.
The microsonic distance sensor is an intelligent ultrasonic sensor that measures the distance from the sensor to an object using ultrasonic waves. The microsonic distance sensor is an intelligent ultrasonic sensor that measures the distance from the sensor to an object using ultrasonic waves. The microsonic distance sensor is an intelligent ultrasonic sensor that measures the distance from the sensor to an object using ultrasonic waves.
Microsonic Product Overview

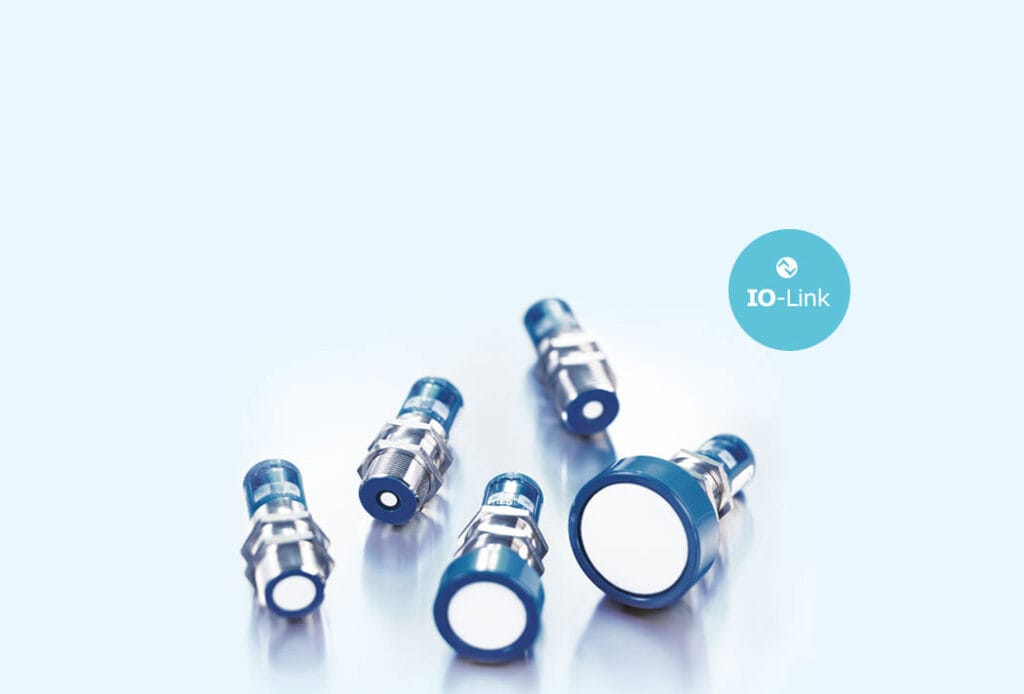

mic+ ultrasonic sensors
mic+ sensors are available in four device designs with five different detection ranges
The mic+ sensor family
embedded in its M30 housing design covers a measuring range from 30 mm to 8 m with its five detection ranges. Depending on the detection range, the internal resolution for distance measurement is 0.025 or 2.4 mm. All sensors are equipped with integrated temperature compensation.
TouchControl with LED Display
- Digital display with direct measured value output in mm/cm or %
- IO-Link interface for support of the new industry standard
- Numeric configuration of the sensor using digital display permits complete advance configuration of the sensor
- Automatic synchronisation and multiplex operation for simultaneous operation of up to ten Sensors in close quarters
- UL Listed to Canadian and US safety standards
- 1 Push-Pull switching output pnp or npn basis
- 1or 2 switching outputs in pnp or npn variants
- Analogue output 4–20 mA and 0–10 V with automatic switching between current and voltage outputs
- Analogue output plus 1 pnp switching output
- 5 detection ranges with a measurement range of 30 mm to 8 m
- microsonic Teach-in by using button T1 and T2
- 0.025 mm to 2.4 mm resolution
- Temperature compensation
- 9–30 V operating voltage
- LinkControl for configuration of sensors from a PC

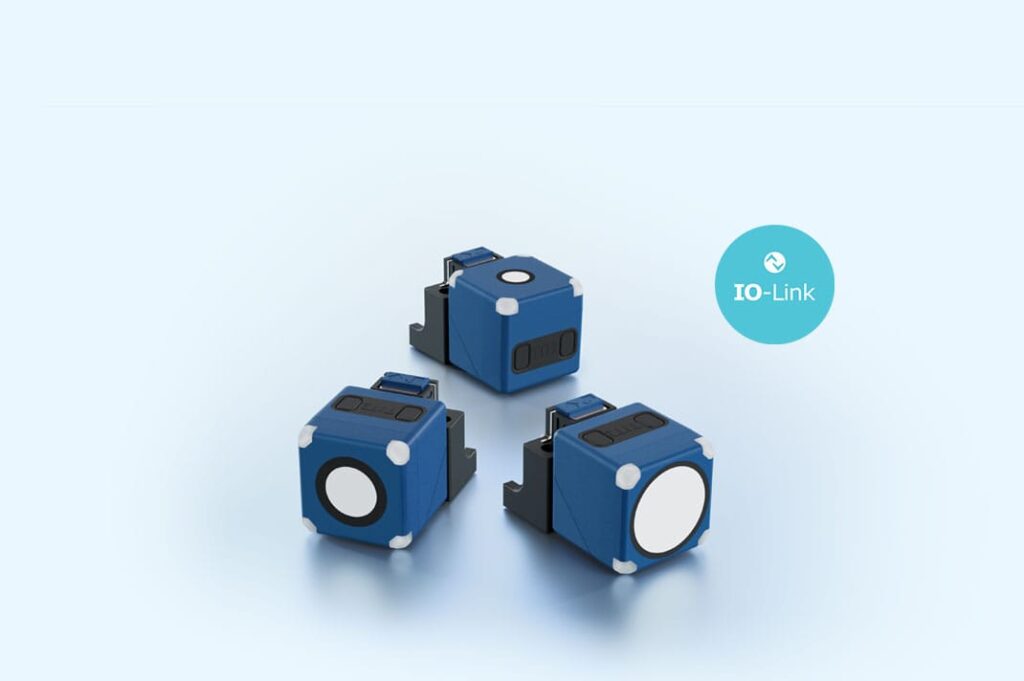

Cube Ultrasonic Sensors
cube ultrasonic sensors – easy installation: no tools required thanks to QuickLock mounting bracket.
The cube ultrasonic sensors are designed in a cubic housing for demanding applications. The cube is available with the QuickLock mounting bracket. This allows the sensor to be mounted quickly and easily.
cube sensor with QuickLock mounting bracket
The cube can be easily turned in 5 positions thanks to the rotating sensor head. The convenient mounting allows flexible use in numerous applications.
- Cubic miniature housing only 40 mm x 40 mm x 40 mm
- Sensor head mountable in 5 positions
- Easily visable LED display in any mounting position
- Convenient QuickLock mounting bracket
- UL listed to Canadian and US safety standards
- IO-Link interface for support of the new industry standard
- Smart Sensor Profiles more transparency between IO-Link Devices
- 1 Push-Pull switching output pnp or npn basis
- 1 Push-Pull switching output and 1 analogue output or switchable to second switching output
- 3 detection ranges with a measurement range of 65 mm to 5 m
- microsonic Teach-in by using button T1 and T2
- Temperature compensation
- 9–30 V operating voltage
- LinkControl for configuration of sensors from a PC

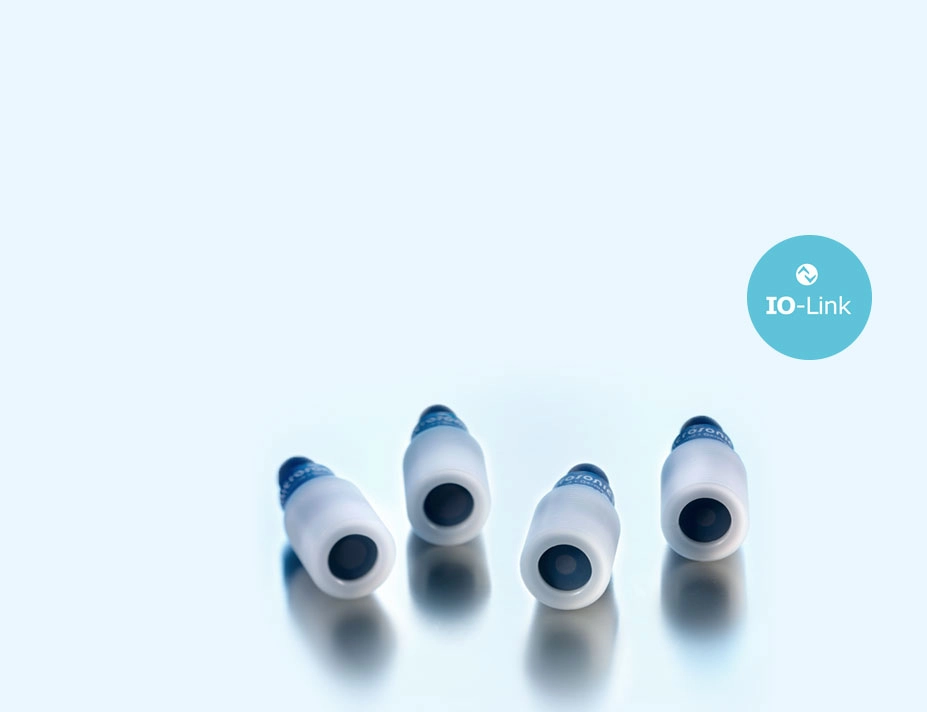

pico+TF ultrasonic filling-level sensor
The pico+TF sensors are ideal for the non-contact fill level measurement of chemically aggressive liquids or granules.
pico+TF ultrasonic sensors
The compact dimensions of the pico+TF sensors makes them ideal for fill-level measurement in housings of restricted dimensions. The ultrasonic transformer is protected against aggressive media by a PTFE film. The exterior PVDF coating with its M22 x 1.5 external thread seals the ultrasonic transformer from the sensor housing.
The M22 sensors detect in a contactless fashion and are reliable within a measuring range of 20 mm to 1,300 mm. The ultrasonic sensor is the best choice for non-contact fill level measurement with chemically aggressive liquids or granules.
For the pico+TF sensor family
there are 2 output stages and 4 detection ranges available:
 | 1 Push-Pull switching output with pnp or npn switching technology |
 | 1 analogue output 4–20 mA or 0–10 V |
- PTFE membrane for protection against aggressive media
- M22 sleeve in PVDF
- IO-Link interface for support of new industry standard
- Automatic synchronisation and multiplex operation for simultaneous operation of up to ten sensors in close quarters
- 1 Push-Pull switching output pnp or npn basis
- Analogue output 4–20 mA or 0–10 V
- 4 detection ranges with a measurement range of 20 mm to 1,300 mm
- microsonic Teach-in on pin 5
- 0.069 mm resolution
- Temperature compensation
- 10–30 V operating voltage
- LinkControl for configuration of sensors from a PC

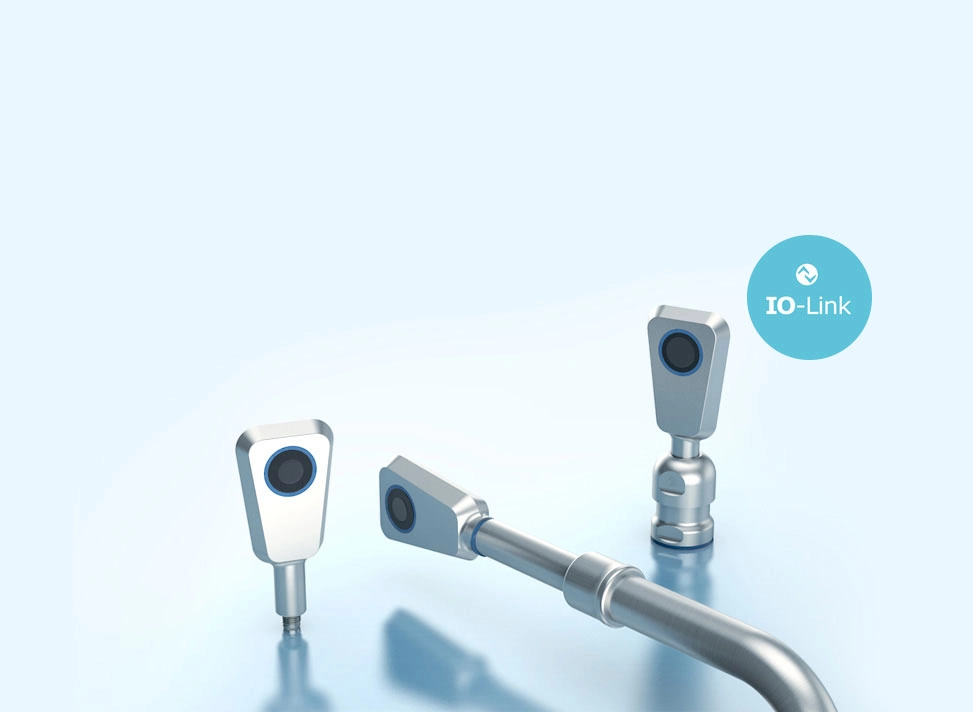

pms ultrasonic sensors
The design of the wash-down stainless steel housing with no crevices and dirt edges makes pms sensor perfectly suited to intensive cleaning and disinfection.
The pms ultrasonic sensors
are designed for the most demanding hygienic requirements according to EHEDG guidelines. Two versions of the sensor are available: D12 adapter shaft and D12 bayonet catch. The standard version D12 adapter shaft is mounted with a hygienic screw connection BF-pms/A1 or an adequate mounting clip.
The innovative design of the stainless steel housing ensures that the pms sensor has no horizontal surfaces in almost all conceivable installation positions. Even with horizontal installation of the hygienic sensor for measuring vertical downwards, the rear side of the housing maintains an angle of ≥ 3°. Cleaning fluids can safely drain off the housing.
Rear side of the housing with an incline of ≥ 3°
- Innovative housing in Washdown Design easy to clean, EHEDG certified
- Two stainless-steel housings for use in the food and pharmaceutical industry
- PTFE membranefor protection against aggressive media
- Sealed against the housing with an O-ring made from FKM for the highest possible chemical resistance
- ECOLAB certified and FDA-compliant materials
- IO-Link interface for support of the new industry standard
- UL Listed to Canadian and US safety standards
- 1 Push-Pull switching outputs pnp or npn basis
- Analogue output 4–20 mA or 0–10 V
- 4 detection ranges with a measurement range of 20 mm to 1.3 m
- Temperature compensation
- 9–30 V operating voltage
- LinkControl for configuration of sensors from a PC
FAQs
What is a Microsonic Distance Sensor?
Microsonic distance sensors use ultrasonic waves to measure distances accurately. They are designed to operate without physical contact, ensuring minimal wear and tear.
How Microsonic Sensing Devices Work?
These devices emit ultrasonic pulses that reflect off objects and return to the sensor. The time taken for the echo to return is calculated to determine the distance.
What are applications of Microsonic Distance Sensors?
Commonly used in industrial automation for object detection and positioning. Utilized in robotics for navigation and obstacle avoidance.
what are Advantages of Using Non-Contact Distance Sensors?
Increased durability and longevity due to the absence of mechanical parts. High precision and reliability in various environmental conditions.
