Ravioli S.p.A. is a Milan-based manufacturer of electromechanical and mechanical devices for industrial sectors like lifting, construction, and electric vehicles. Founded in 1926, they produce components like contactors, limit switches, and rotary joints used globally in forklifts, bridge cranes, and aerial platforms.
- sales@rendertechindia.com
- +91-8698009335
We are Authorized distributor for Ravioli S.p.A in India. produce components like contactors, limit switches, and rotary joints used globally in forklifts, bridge cranes, and aerial platforms.
Pendant stations LADY series
Particularly resistant and therefore also suitable for applications in severe circumstances, Ravioli push-button pendant stations for auxiliary circuits series Lady are built in robust material and with an ergonomic design.
Self-cleaning switches can be also supplies as spare parts; all buttons are marked with international symbols.
Lady series includes 8 different sizes – from 2 to 12 buttons – and several accessories and options, like emergency stops, dead man enabling switch, key and lever selectors, pilot lamps, connection bridges for an easier cabling.
This allows Ravioli Lady Pendant Stations to be highly personalised according to the requirements and needs of our clients. From the latest version with 5 buttons, which allows a more comfortable use and manageability, to the possibility – upon request – of providing the new Lady Pendant Stations with a new emergency button in 3 positions which, in case of need, operates as security emergency button both when totally released in position 1 and totally pressed in position 3.

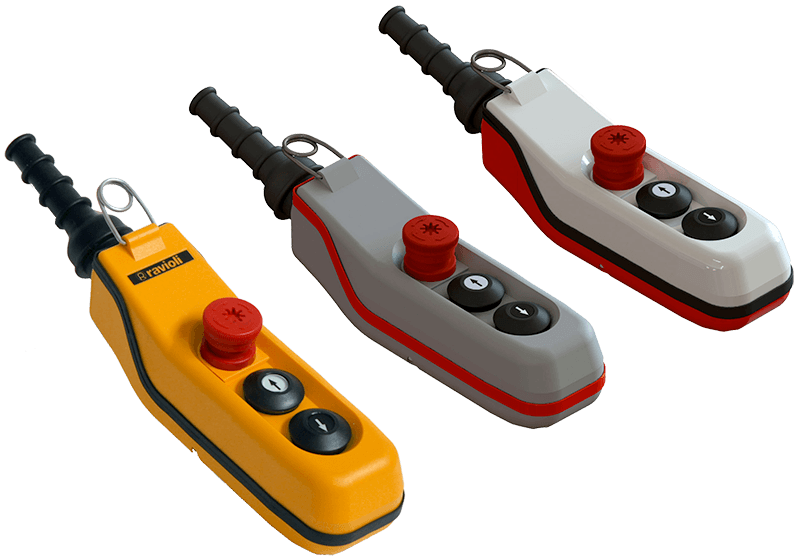

Ravioli is also able to provide the new Lady in different colours or combinations of colours – among a designed range of solution designed only for you – according to your specific requests.

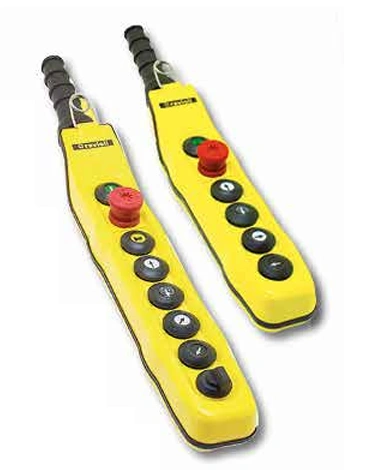

Single-row Pendant Stations
LADY Series
The LADY Series single-row push-button stations for auxiliary circuits are the result of Ravioli’s long experience in projecting and manufacturing industrial command devices for years. These Pendant Stations are mainly used in the industrial lifting – in order to control cranes, bridge cranes, hoists and winches – or in numerous industrial applications when indoor or outdoor handling of machinery or goods is required. In designing the product a specific attention was paid to manageability and easy use of the device, whilst maintaining unchanged, in the choice of used materials, the mechanical resistance and reliability which have always been identifying Ravioli’s products.

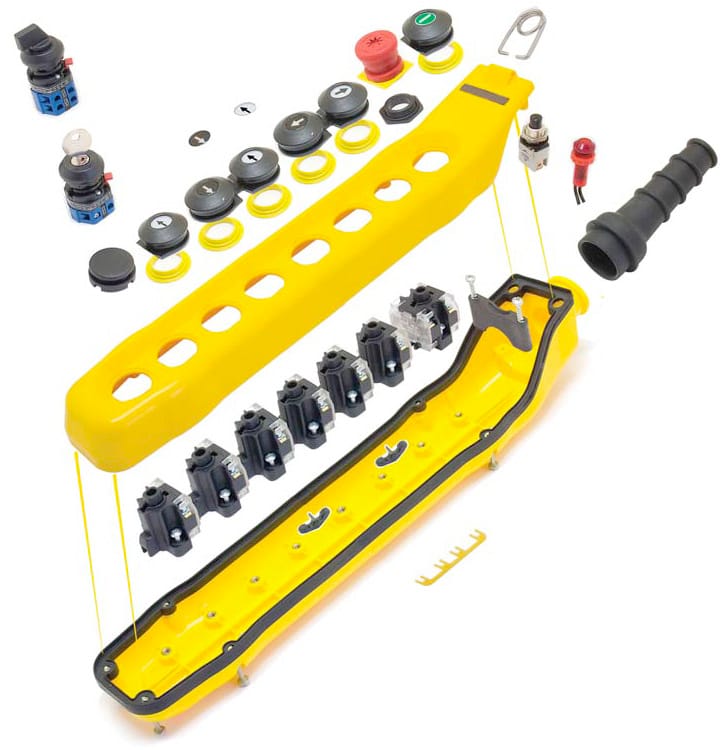

The optimised internal space allows to make easy and quick connections. Bridge connections – available upon request – have been projected in order to reduce cabling time. Available switches with 1 or 2 speed were specifically positioned at the bottom of the pendant station, increasing the endurance to avoid the damage of cables and improving the reliability of the mechanical interlock, together with accelerating cabling time. The rubber sleeve has been expressively oriented in order to enable a better grip to the operator and to allow a more detailed view of the symbols. The bottom is provided by slip-resistant rubbers to ease the use of the device in every condition or environment.

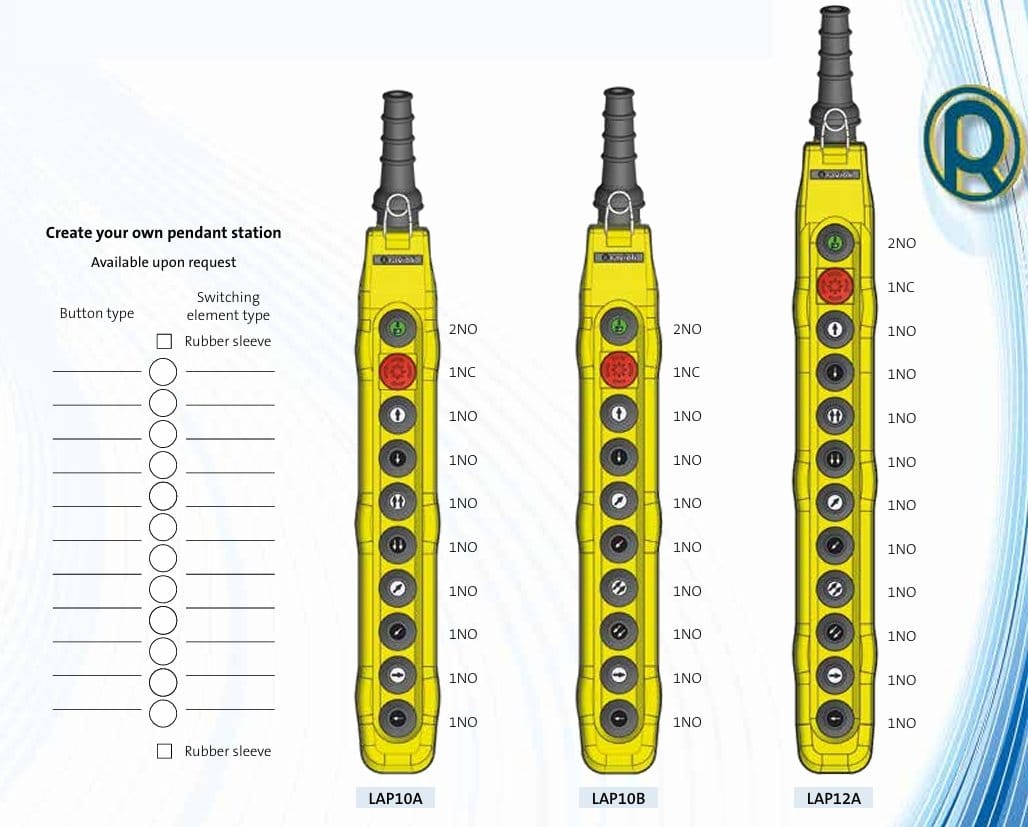

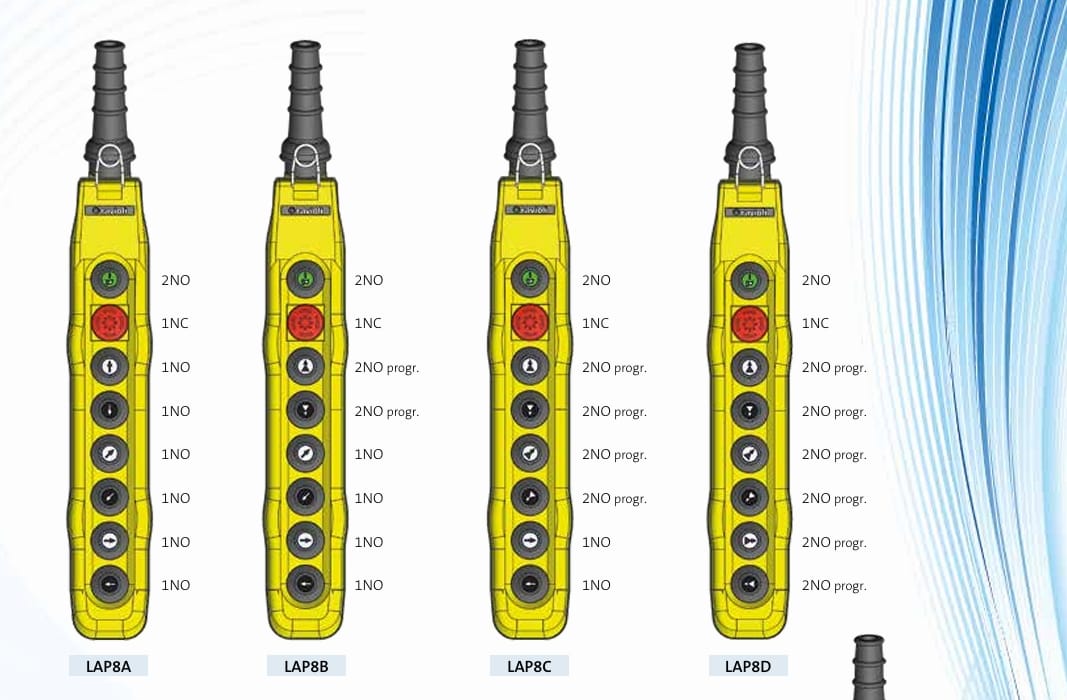

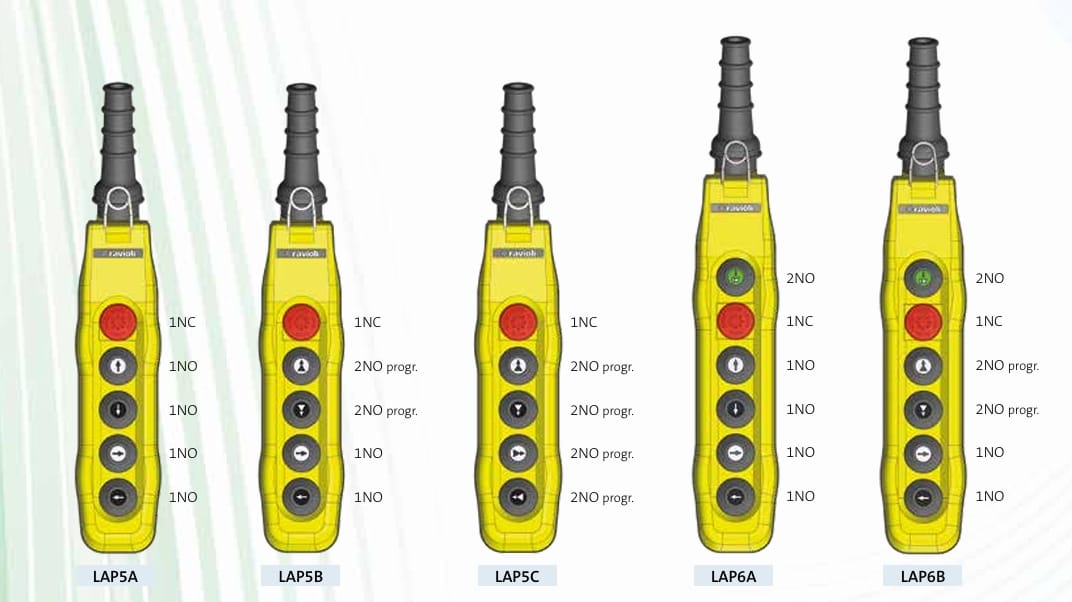

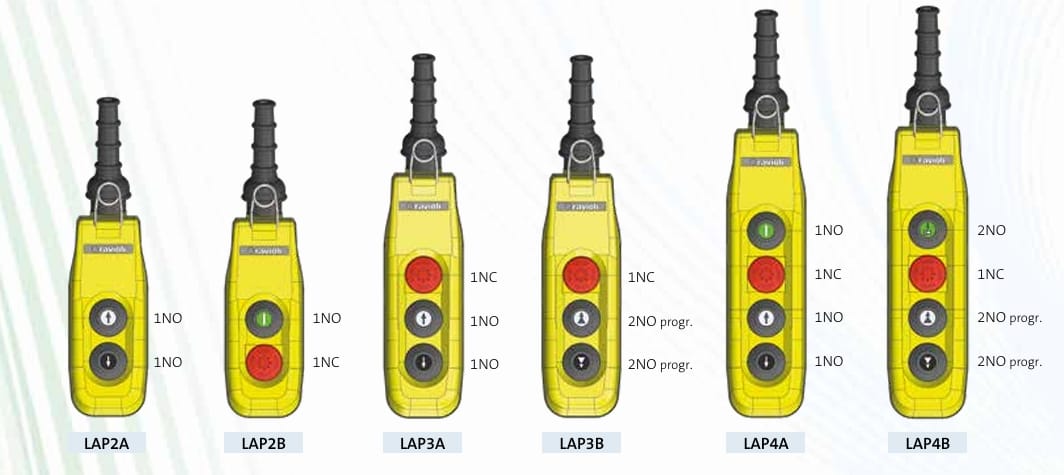

Standard Executions
The types of push-buttons pendant stations shown below are standard versions.
A mechanical interlock for opposite movements is provided as standard.
Thanks to the versatility of assembly, personalised executions are available upon requests.
Rotary limit Switches
Used to control specific motions in various industrial lifting machinery, rotary limit switches represent a reliable solution as response to different exigencies of precision and durability.
The connection between the shaft and the motor generates – after a certain number of turns – the intervention of the internal switches.
Precision in the cams calibration, large availability of ratios, optional sensors, other additional accessories make Ravioli rotary limit switches suitable for several applications: from lifting machinery to industrial high-speed doors, from theatre lighting hoists to renewable energy systems, like solar tracks and wind turbines.
